6 1/2 Digits XDM6000 Series Digital Multimeter

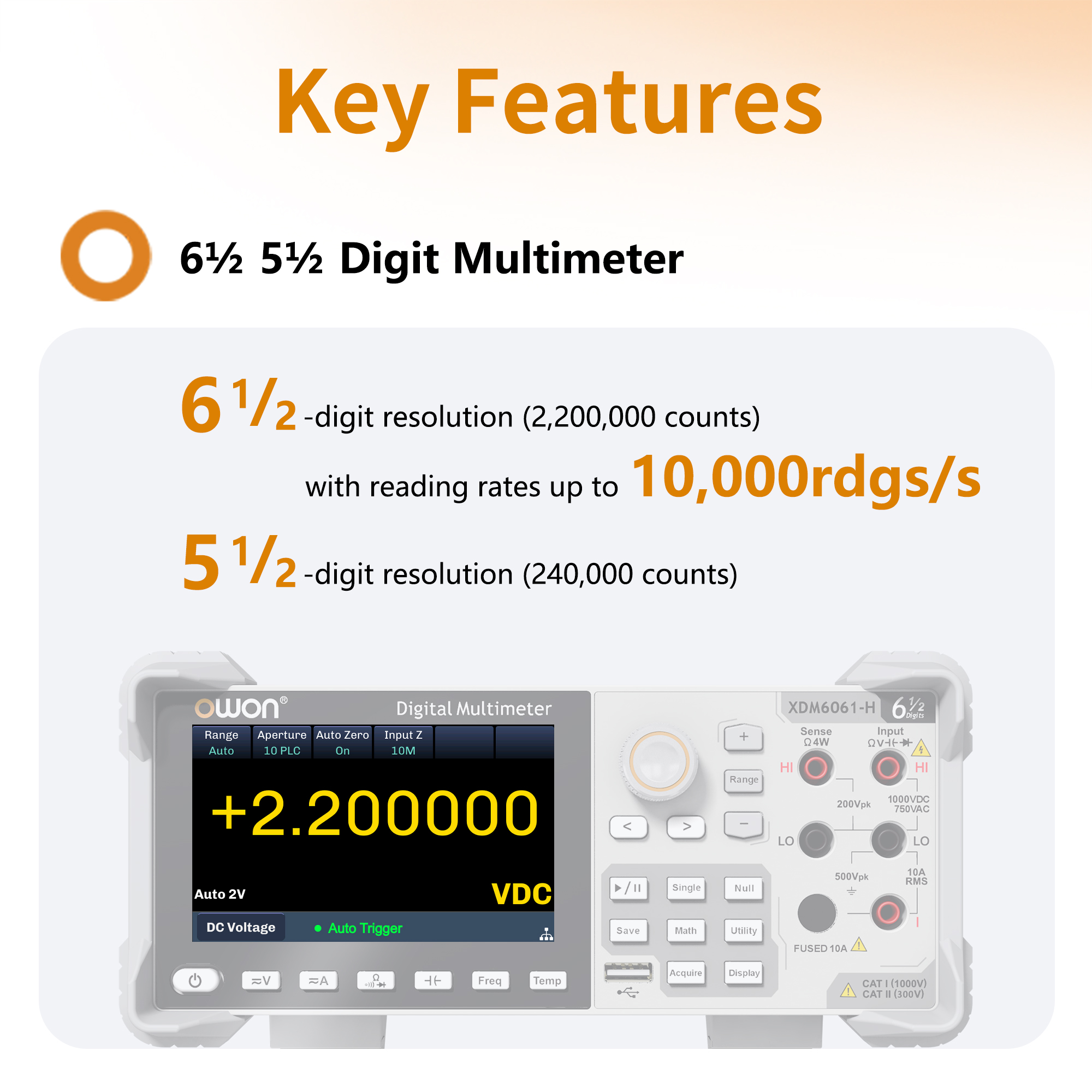

+ True 6½-digit High Resolution, delivers up to 2,200,000 counts for precise and reliable measurements
+ Wide measurement range up to 3000V / 200A , meets the special requirements of photovoltaic, energy storage, and new energy vehicle testing
+ High-speed measurement up to 10,000 rdgs/s, greatly improves testing efficiency.
+ Comprehensive math functions, include Max, Min, Average, Standard Deviation,Relative Measurement, Bar Graph, Histogram, Trend Chart, dB/dBm, Limit test, and more; perform data analysis directly on the instrument without extra software
+ Built-in thermocouple cold junction compensation, no need for external compensation hardware, saving accessory costs and improving temperature measurement accuracy
+ Data Logger Function: records all measurement values in CSV format, with a fastest logging interval of 1ms, 2M points capacity, and expandable to 100M points via USB drive
+ 2 Gb NAND Flash Storage, stores large amounts of instrument setup files and data files.
+ Multiple Interfaces: USB Device / Host, LAN, RS-232; supports standard SCPI commands for easy integration into automated test systems
+ 4.3-inch IPS touchscreen, intuitive operation and graphical display allow engineers to get started faster, reduce operation time, and enhance visualization experience.

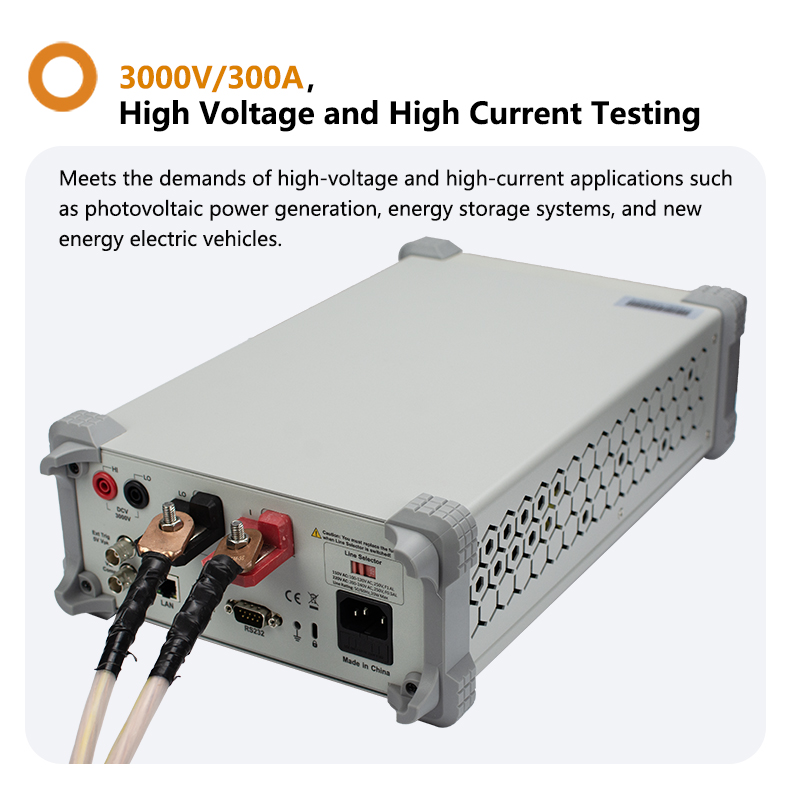

Direct High-Voltage & High-Current Measurement
6½-Digit Resolution (2,200,000 counts resolution) with 3000V / 300A Range. Up to 10,000 rdgs/s for transient and dynamic signal analysis.

Advanced Math Functions & Multi-View Graphical Display
7 Math Functions: Max, Min, Average, Standard Deviation (StdDev), Relative (Rel), dB, dBm. 4 Display Modes: Numeric, Bar Meter, Histogram, Trend Chart.

Data Logger Function (1 ms – 3600 s Interval)
1 ms to 3600 s for fast transient capture and long-term trend recording.2M points internal memory, expandable to 100M points via external USB drive.Ambient temperature inspection, production-line burn-in/aging tests, and laboratory data acquisition.

Precise Temperature Measurement
Built-in thermocouple cold junction compensation ensures high reliability in temperature measurements. Compatible with various temperature sensors, such as thermocouples, RTDs, and 2/4-wire thermistors.

Probe Hold Function (9-Point Multi-Mode Memory)
Dedicated key locks readings instantly when probing high-density IC pins and SMD parts under restricted sightlines. Up to 9 consecutive measurements across diverse test functions (Voltage, Resistance, Continuity, etc.) without repeated screen checks.

4.3-inch IPS Touchscreen
IPS technology ensures vivid, crystal-clear visual monitoring across broad viewing angles. Intuitive Touch Control drastically reduces setup time, streamlining testing efficiency and elevating the visual interactive experience.

Multiple Communication Interfaces & Web Server Function
Equipped with a standard suite of LAN, USB Device, USB Host, and RS232 interfaces, seamlessly fulfilling the diverse integration and cabling requirements of benchtop debugging, automated ATE production lines, and rack-mounted test systems.

Accuracy Specification: ±(%Reading + %FS)
|
Model |
XDM6061, XDM6061-H |
XDM6051 |
||
|
|
Measurement Range |
Optimal Accuracy |
Measurement Range |
Optimal Accuracy |
|
DC Voltage |
200.0000mV – 1000.000V(XDM6061) 200.0000mV – 3000.000V(XDM6061-H) |
0.0035±0.0006 |
200.000mV – 1000.00V |
0.010+0.004 |
|
True RMS AC Voltage |
200.0000mV - 750.0000V |
0.06+0.04 |
200.000mV - 750.000V |
0.2 + 0.05 |
|
DC Current |
200.0000μA - 10.00000A(XDM6061) 200.0000μA - 300.00000A(XDM6061-H) |
0.050+0.003 |
200.000μA - 10.0000A |
0.055 + 0.005 |
|
True RMS AC Current |
200.0000μA - 10.00000A |
0.10+0.04 |
200.000μA - 10.0000A |
0.5 + 0.1 |
|
Resistance |
200.0000Ω - 100.0000MΩ |
0.010+0.001 |
200.000Ω - 100.000MΩ |
0.020 + 0.003 |
|
Diode Test |
0 - 5V |
0.010+0.020 |
0 - 5V |
0.050 + 0.03 |
|
Continuity Test |
2000.0 Ω |
0.010+0.020 |
2000.0 Ω |
0.050 + 0.020 |
|
Frequency/period |
3Hz - 1MHz |
0.007 |
20Hz - 1MHz |
0.01+0.003 |
|
Capacitance |
2.0000nF - 100.00mF |
1 + 0.3 |
2.000nF - 20.00mF |
1 + 0.5 |
|
Temperature |
Thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type) thermal resistance (RTD sensor conversion between Pt100 and Pt385 type) 2-wire and 4-wire thermistors (5 kΩ 44007 type) |
|||
|
Mathematical |
Min, Max, Avg, Std Dev, dBm, dB, Limit,NULL,Histogram, Trend Chart, Bar Chart |
|||
|
Trigger |
External Trigger、VMC out |
|||
|
Logging Duration |
1ms-3600s |
|||
|
Logging Length |
2M points (Internal memory) |
|||
|
Interface |
LAN, USB Device, USB Host, RS232 |
|||
|
Display |
4.3-inch IPS LCD |
|||
|
Dimension (mm) |
XDM6061-H: 109 x 226 x 346 (W x H x D); XDM6061, 6051: 109 x 226 x 320(W x H x D) |
|||
|
Weight |
≈3.5kg |
|||
General Accessories
| Name | Order Number |
|---|---|
| Quick Guide | ———— |
| Power Cord | ———— |
| USB Cable | 7ULD10 |
| Multimeter Leads | 7MP103 |
| Banana Plug to Alligator Clips | 7CP_B20 |
Optional Accessories
| Name | Order Number |
|---|---|
| Kelvin Clip | XDL1201 |
